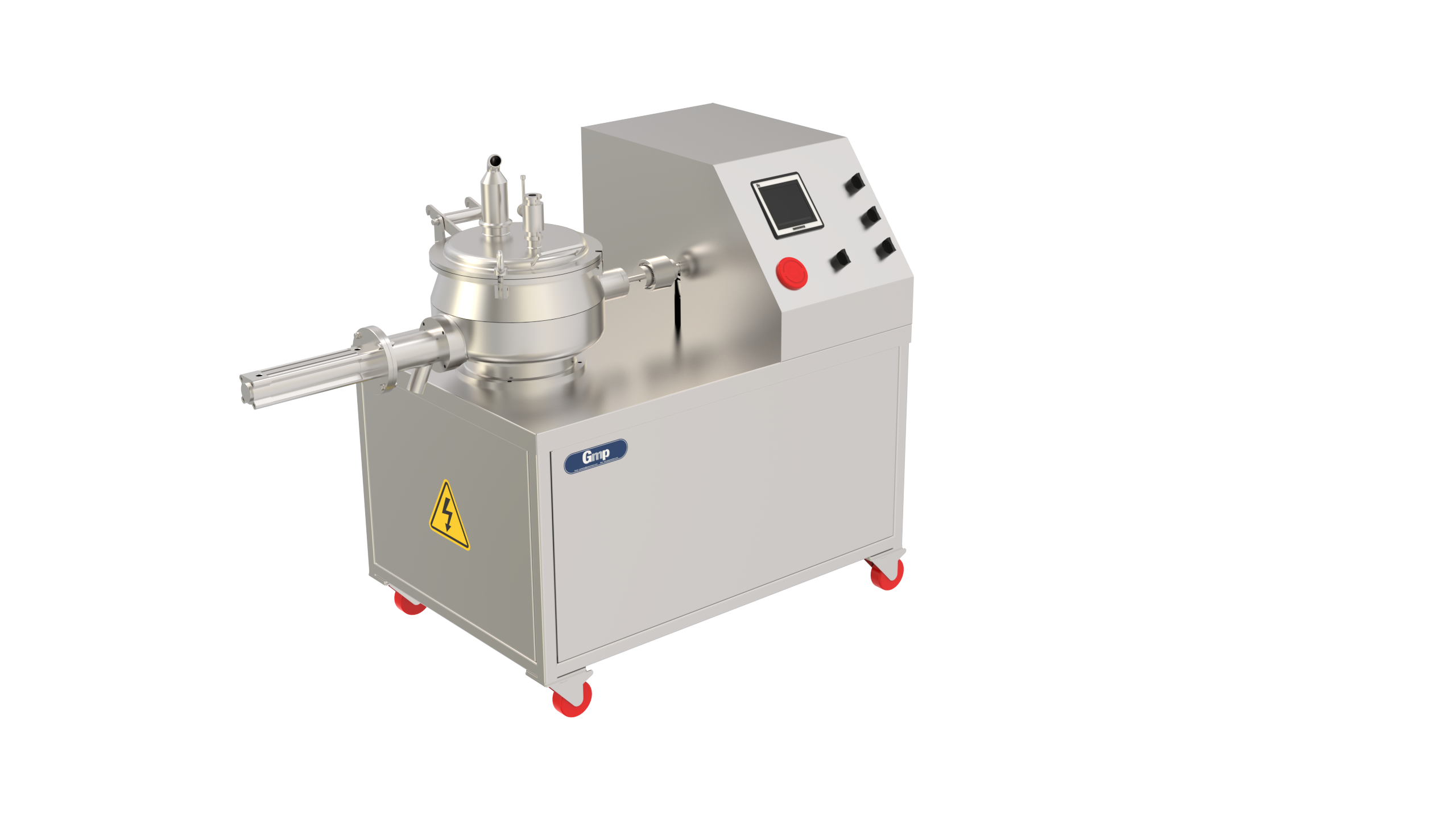

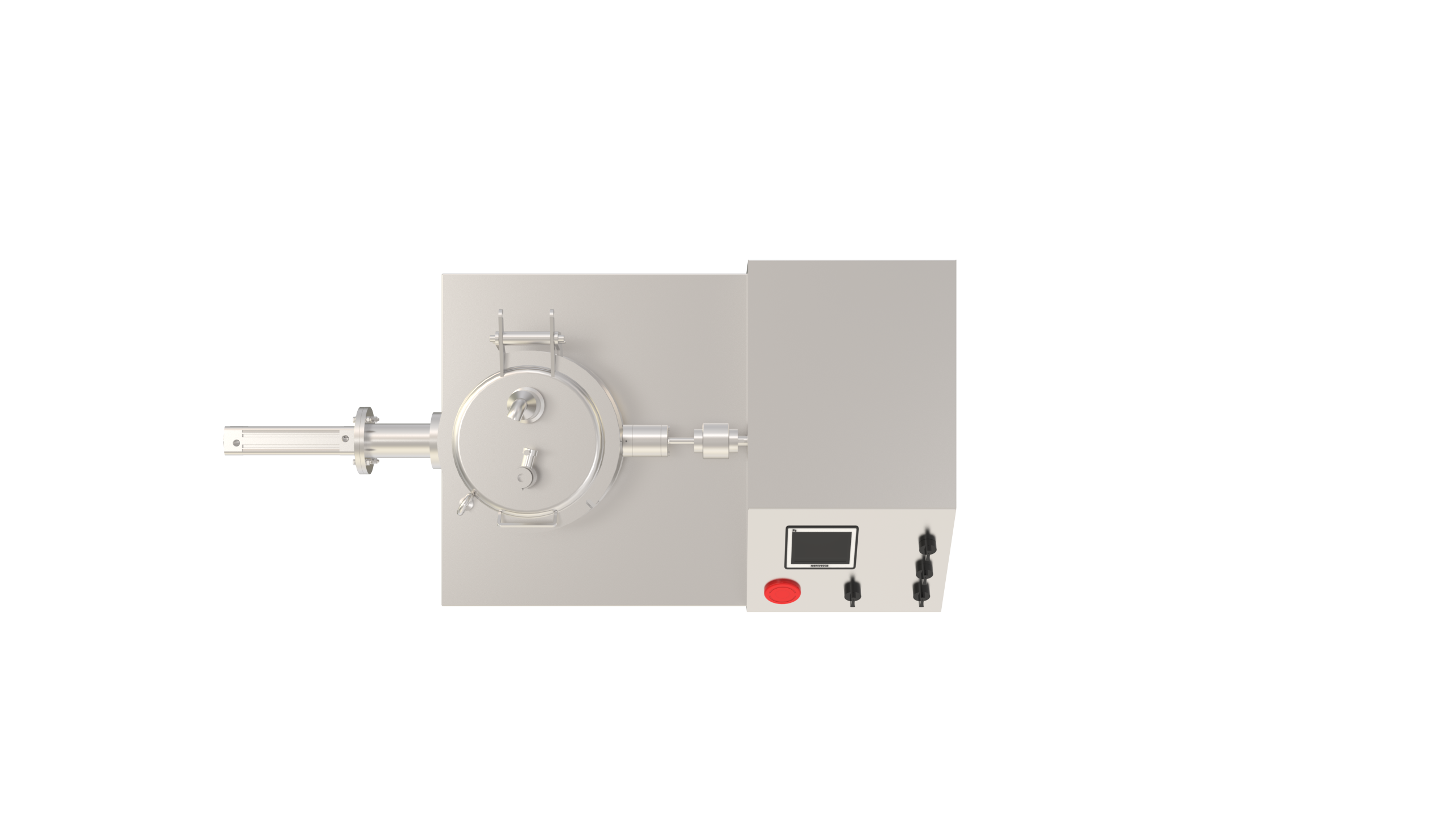

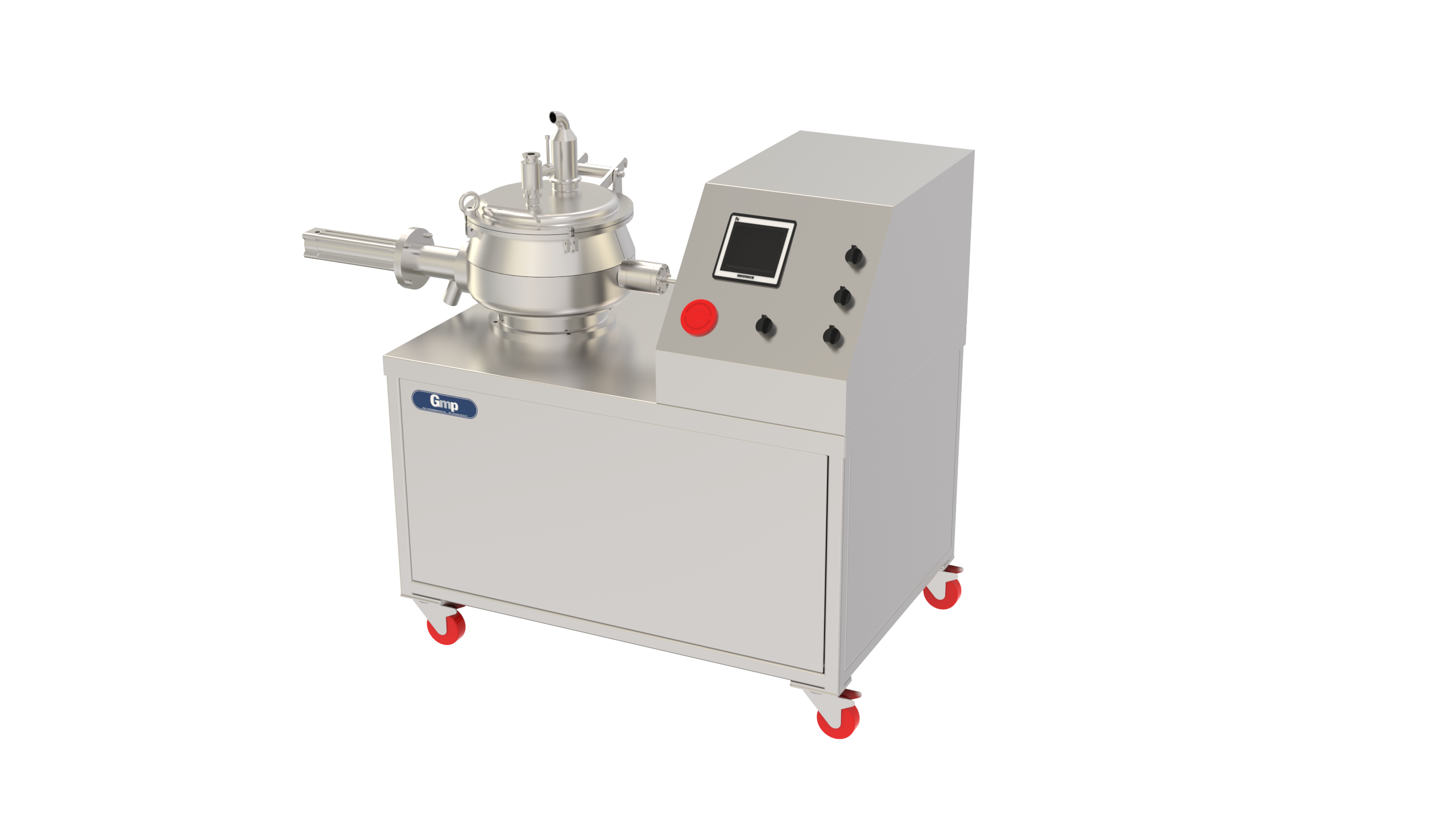

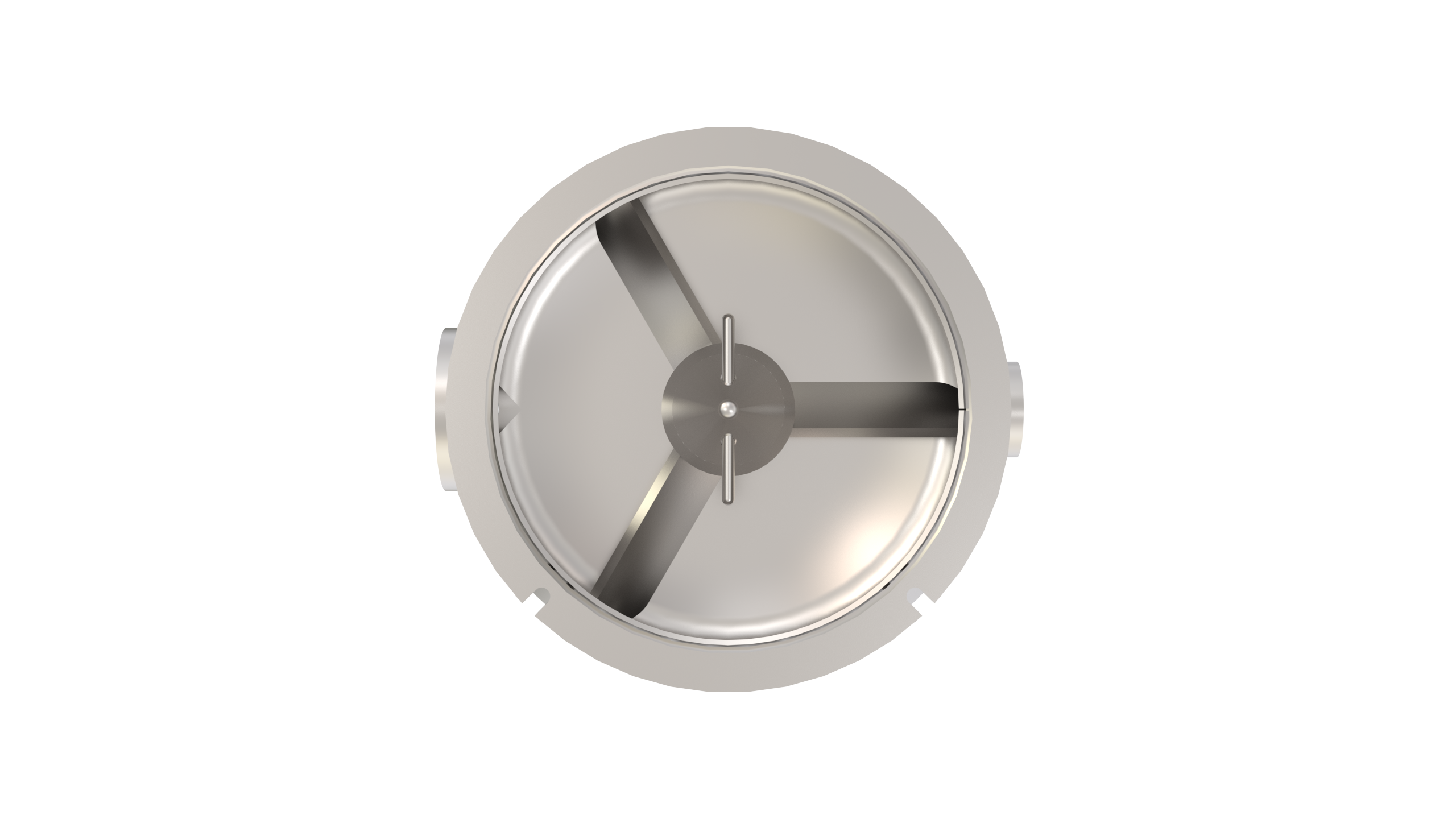

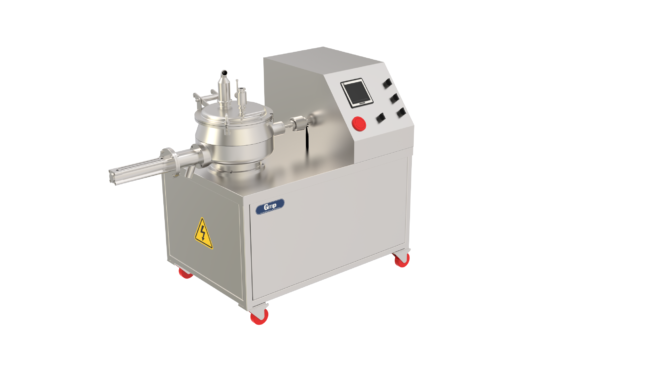

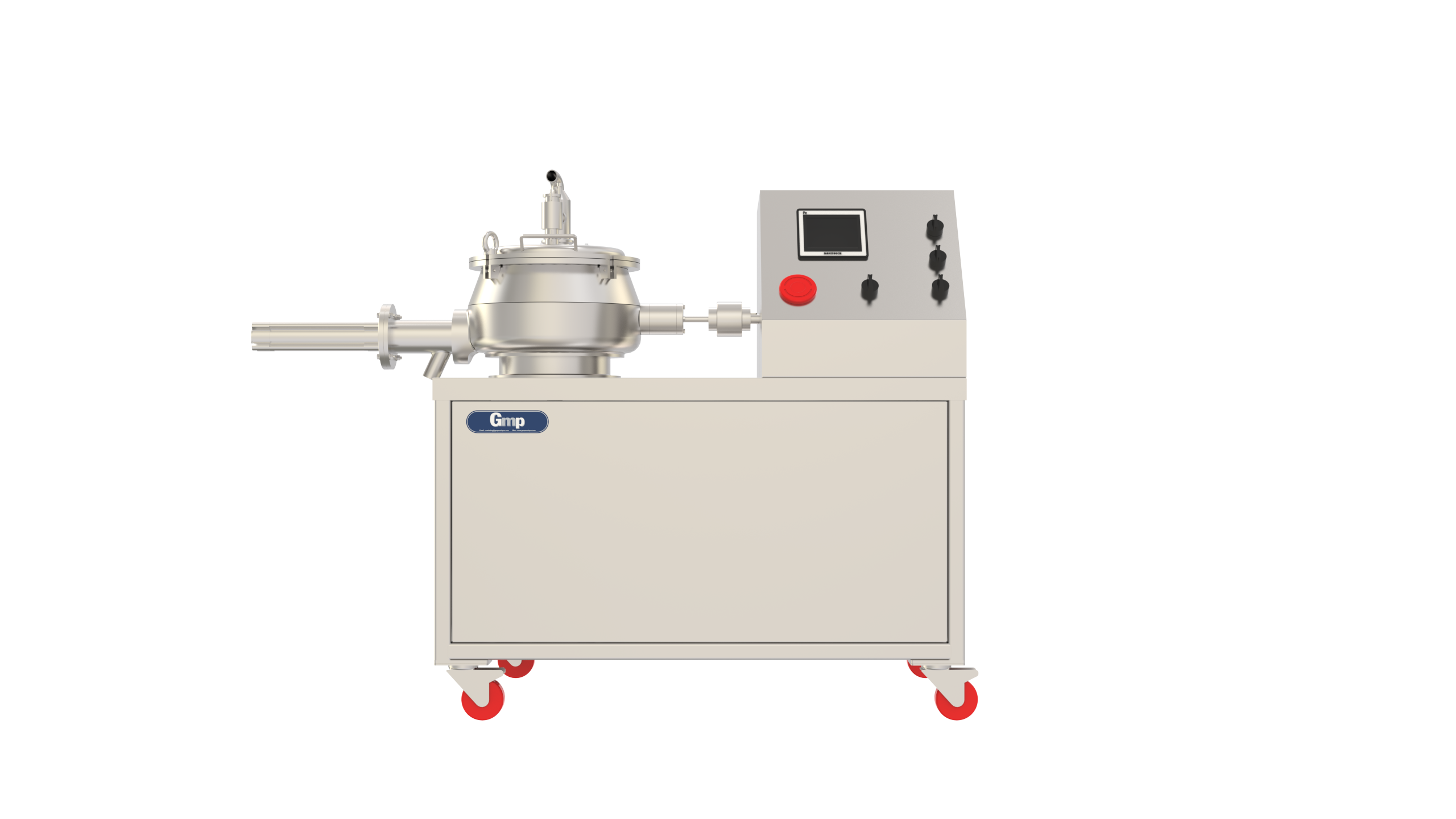

Rapid Mixer Granulator With Fix & Changeable Bowl (Lab Model)

Salient Features:

• Basic Machine with All Contact Parts SS316 (cGMP Model)

• Pneumatic Discharge

• All Gaskets made of Food Grade Silicon,

• Process air purging system In Impeller bearing housing,

• Pneumatic Lid Opening

• Product Charging Port.

• Reduction Gear Box,

• Variable frequency drives for both motors

• All Motors, Electrical & Pneumatic Parts are reputable brands.

• Manual operations through control panel.

• Powder coated control panel.

• Perfectly engineered mixer & chopper for uniform and homogeneous mixing of substances.

• Shorter mixing and granulating time

• Designed for optimum use of bowl capacity.

• Effective sealing for leak-proof operation

• Easy to clean & maintain.

Optional:

• PLC based operations with colour HMI.

• In-line co-mill.

• Binder spraying system.

• WIP / CIP system.

Model	RMG - 3	RMG - 5	RMG - 10	RMG - 10/5/3	RMG - 25	RMG - 25/10
Gross Capacity	3 Liters	5 Liters	10 Liters	10/5/3 Liters	25 Liters	25 Liters
Working Capacity	2.4 Liters	4 Liters	8 Liters	8/4/2.4 Liters	20 Liters	20/8 Liters
Batch Capacity in Kg	0.6 - 1.2 Kg	1 - 2 Kg	2 - 4 Kg	4/2/1.2 Kg	0.5 - 10 Kg	10/4 Kg
Main Motor HP
(750 - 1500 RPM)	1 HP/ 2 HP	1 HP/ 2 HP	2 HP/ 3 HP	2 HP/ 3 HP	3 HP/ 5 HP
Chopper Motor HP
(1500 - 2880 RPM)	0.5 HP/ 0.75 HP		0.5 HP/ 1.0 HP	1.5 HP/ 2.0 HP
